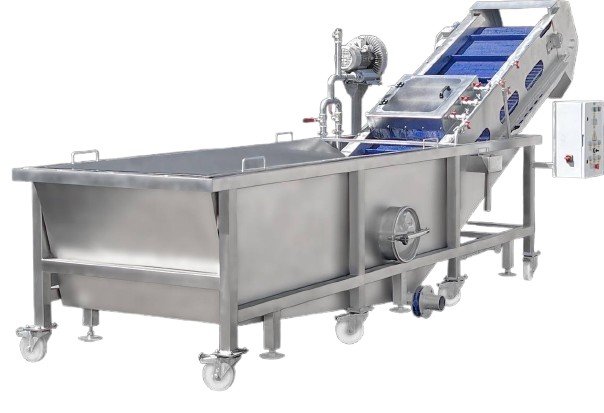

Bubble Washer (Type 1)

An optimal solution for the gentle cleaning of berries, vegetables, garlic, and mushrooms. The operating principle is based on introducing air into a bath with the product, creating an effect similar to a jacuzzi but with a more powerful airflow. This ensures thorough cleaning without damaging the product. The system is equipped with an air flow regulator, allowing you to adjust the washing intensity according to your production specifics and the type of product.

18 months warranty

Free installation in Poland

After-warranty service

3D model

Characteristics

  • Suitable for a wide range of berries, vegetables, fruits, and other food products.
  • Productivity up to 4 t/h.
  • Width of the tank 1200 mm
  • Length of the tank 3800 mm
  • Horizontal length of the entire washer 5434 mm
  • Volume of the tank 2 m³
  • Motor-reducer (country of manufacture: Italy) equipped with a frequency converter for speed regulation
  • Connection 380 V
  • Blower (powerful pump for bubbling) 210 m³/h. 1.5 kW
  • Modular belt manufactured in the EU
  • Width of the belt 640 mm
  • Height of the belt 40 mm
  • Length of the conveyor along the axes of the drums 3500 mm
  • Material – food-grade stainless steel grade AISI 304.

Video review

Principle of Operation of the Bubble Washer

The bubble washer operates on the principle of introducing air into a bath with the product, creating an effect similar to that of a jacuzzi. Thanks to the powerful airflow, impurities such as dirt and residues are effectively removed from the surface of the products. A distinctive feature of this washer is that it does not damage delicate berries or vegetables, making it safe for use.

Main Advantages of the Bubble Washer

  • Cleaning Efficiency: With the powerful airflow, the bubble washer ensures thorough cleaning without mechanical damage.
  • Adjustable Intensity: Users can adjust the airflow according to the specific product, making the washer a versatile solution.
  • Ease of Maintenance: The equipment is easy to clean and maintain due to its thoughtful design.

Additional Features of the Bubble Washer

The modernization of the equipment includes an airflow regulator, allowing the washer to be adapted to different types of products, as well as an automatic shut-off system for safety. This makes the bubble washer not only effective but also safe for use in production.

Conclusion

By choosing a bubble washer, you invest in the quality and efficiency of your product processing. This equipment will help preserve the freshness and appeal of your berries, vegetables, and fruits, which is essential for successfully operating in the food industry. Stay one step ahead of your competitors with modern and efficient equipment!
