Main photo

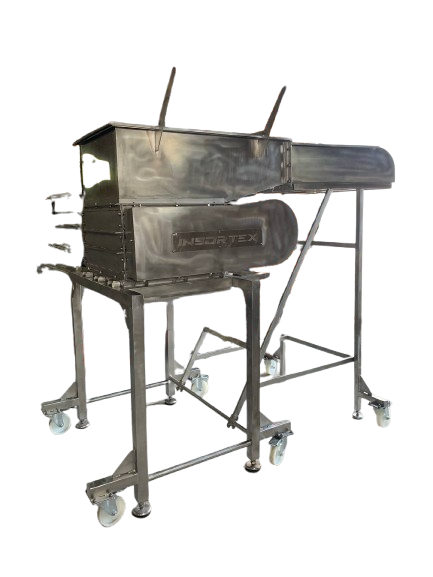

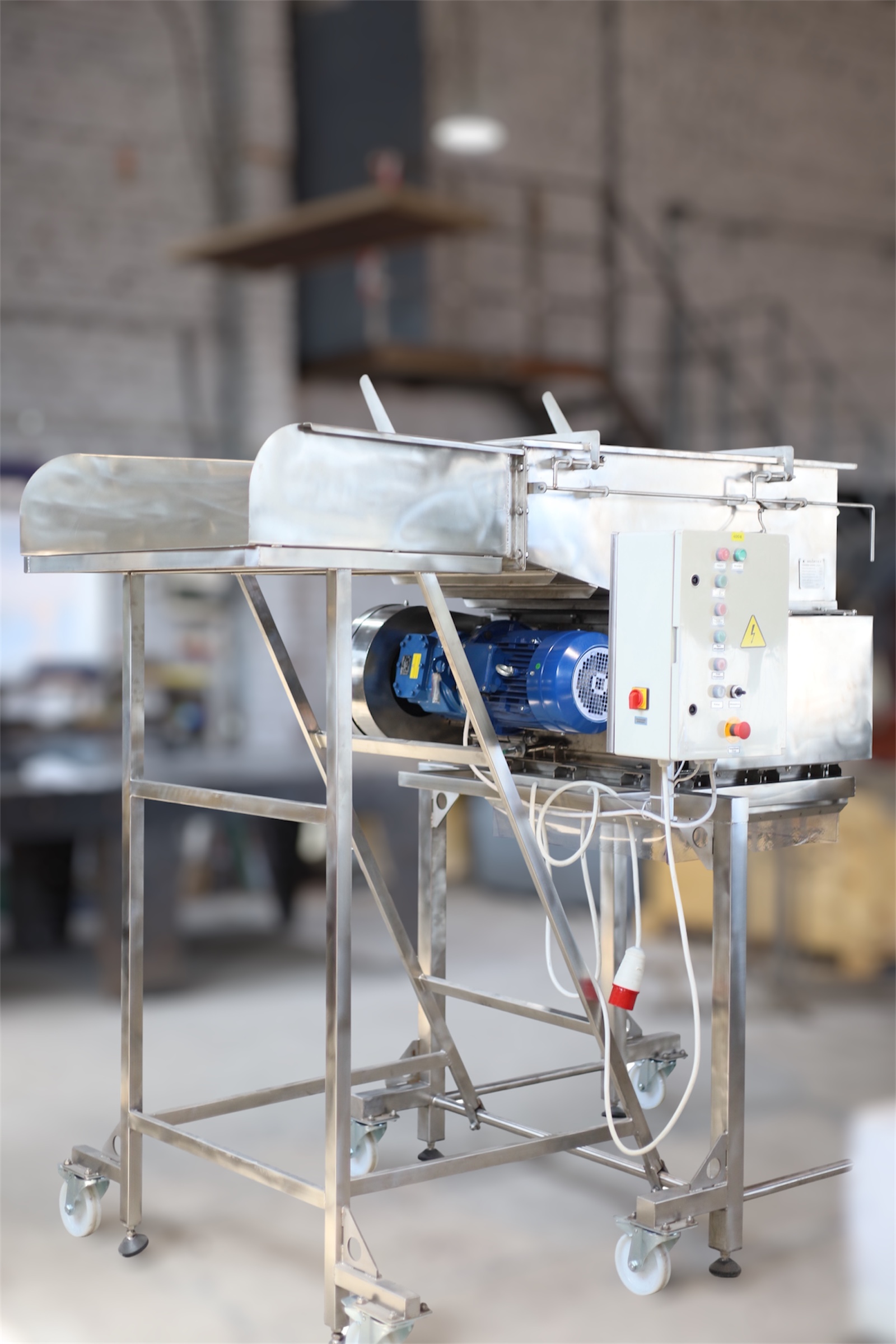

Crusher

A crusher for large frozen blocks. The equipment is mainly used for breaking down large blocks of frozen raspberries, allowing them to pass through a grater to produce granules. Frozen blocks are fed through a tray into the crushing chamber, where two shafts equipped with durable knives easily break down the blocks.

18 months warranty

Free installation in Poland

After-warranty service

Characteristics

  • Length: 1200 mm
  • Width: 1000 mm
  • Number of knives per shaft: 13 pcs/12 pcs
  • Knife thickness: 10 mm
  • Hopper frame thickness: 6 mm
  • Motor gearbox: 7.5 kW
  • Connection: 380 V
  • Made of food-grade stainless steel AISI 304.

Video review

Frozen Block Crusher: Efficient Equipment for Breaking Large Frozen Fruit Chunks

The Frozen Block Crusher is a specialized piece of equipment designed to efficiently break down large chunks of frozen products, including frozen raspberries. This machine is essential in the food industry, enabling streamlined processing of frozen fruits and vegetables to prepare them for further production stages.

How the Frozen Block Crusher Works

The crusher is engineered to handle large frozen blocks, which are fed into the crushing chamber via a feeding chute. Inside the chamber, two robust shafts with strong knives make quick work of breaking down even the largest blocks, readying the product for further processing.

Benefits of Using a Frozen Block Crusher in Food Production

Integrating a frozen block crusher into the production line offers several significant advantages:

  • High Efficiency: With 10mm thick knives, the crusher easily handles even the toughest frozen blocks.
  • Durable Construction: Made from food-grade stainless steel AISI 304, the crusher is both sturdy and corrosion-resistant.
  • High Throughput: A powerful 7.5 kW motor ensures rapid processing of large quantities of frozen products.

Key Design Features of the Frozen Block Crusher

The dimensions of the crusher are optimized for industrial use. Measuring 1200mm in length and 1000mm in width, it is compact enough to fit into tight production spaces. The 10mm thick knives ensure durability and reliability for processing even the hardest frozen chunks.

Applications for Processing Frozen Raspberries and Other Products

While ideal for frozen raspberries, the crusher is also well-suited for various other frozen fruits and vegetables. Its specialized design and robust knives ensure a high-quality breakdown of products, essential for subsequent stages in the production process.

Advantages of AISI 304 Stainless Steel for Food Safety

Constructed from AISI 304 food-grade stainless steel, the crusher is a top choice for the food industry. This material is highly resistant to corrosion, offering a long lifespan for the equipment and ensuring safe processing of food products.

Technical Specifications of the Frozen Block Crusher

  • Length: 1200 mm
  • Width: 1000 mm
  • Number of Knives per Shaft: 13 pcs / 12 pcs
  • Knife Thickness: 10 mm
  • Frame Thickness: 6 mm
  • Motor Gearbox Power: 7.5 kW
  • Power Connection: 380 V

This reliable equipment is a perfect addition to any production line, ensuring efficient processing of frozen products with seamless integration.
