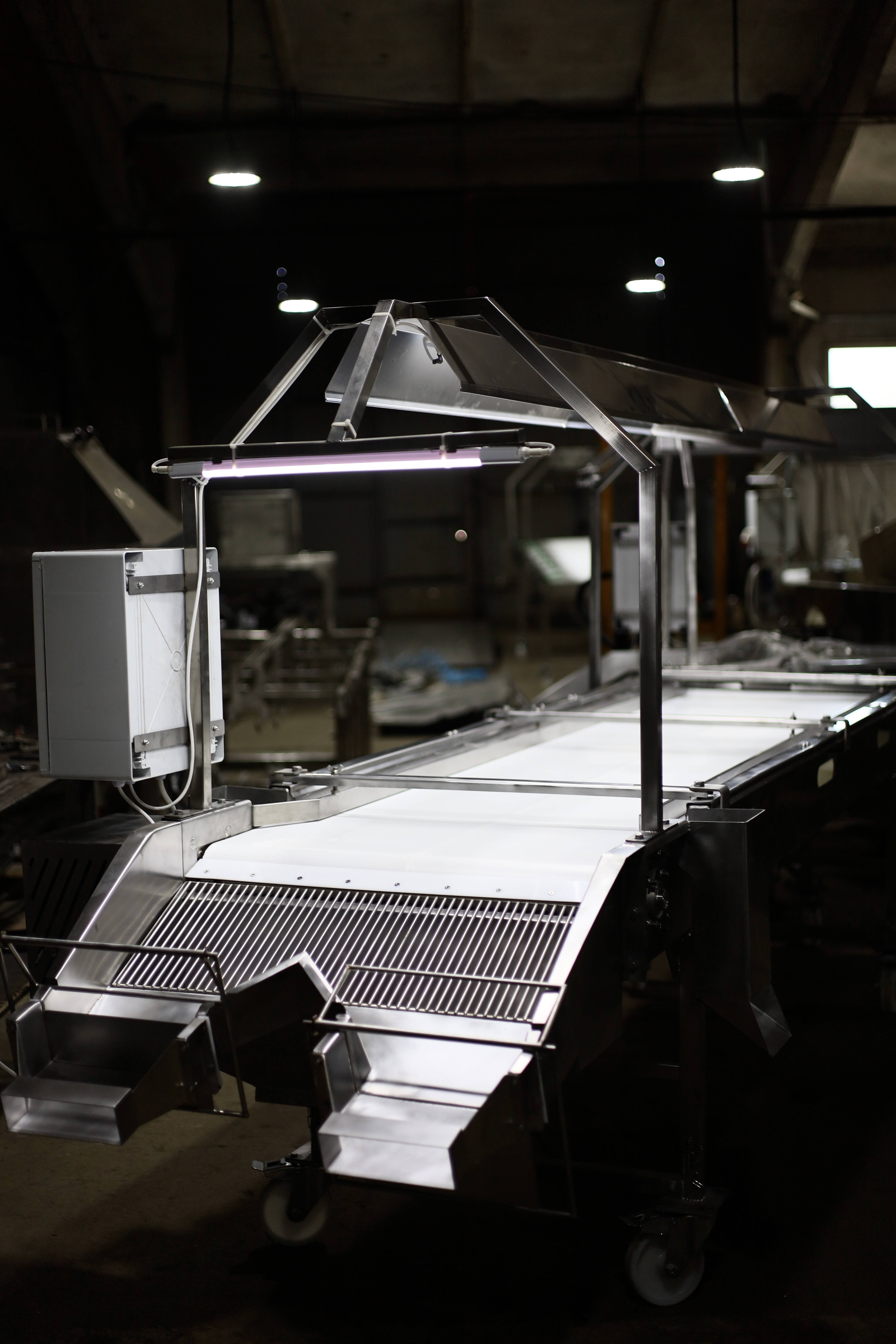

Inspection conveyor with polyurethane belt
The belt on which the product moves is food-grade approved and operates in both warm and low-temperature workshops. To prevent the belt from slipping off, a cord is installed, securely fixing the belt in special channels of the rollers. Scrapers made of food-grade plastic are installed on the frame of the conveyor to clean the belt from product residues on the inside. A removable discharge chute equipped with sliders to control the flow of berries is included. It is equipped with a calibrating grid with a spacing of 8 mm between the bars.
18 months warranty
Free installation in Poland
After-warranty service
Characteristics
- Conveyor length along the axes of the drums: 4000 mm
- Conveyor height: 800 mm
- Height adjustment: 150 mm
- Polyurethane belt
- Belt width: 800 mm
- Thickness: 1.3 mm
- Color: white
- Temperature range: from -30° to +80°C
- Country of origin of the belt: France
- Belt speed: up to 0.2 m/s
- Motor reducer: 0.75 kW equipped with a frequency converter
- Country of origin: Italy; equipment brand: Neri Motori
- LED lamp lighting: 3 pcs.
- Connection: 380 V
- Made of food-grade stainless steel AISI 304.
Video review
Inspection Conveyor with Polyurethane Belt
Introduction to Inspection Conveyors
The inspection conveyor with a polyurethane belt is an essential element of modern production processes, ensuring quality control of products. The use of polyurethane belts makes these conveyors ideal for transporting items that require careful handling.
Advantages of Using an Inspection Conveyor
- High Sensitivity: Thanks to its design, the inspection conveyor can detect even the smallest defects in products.
- Speed Regulation: The frequency converter allows for adjustable conveyor speed to meet production requirements.
- Productivity: The inspection conveyor is capable of high productivity, facilitating faster quality control processes.
Construction and Materials
This conveyor is made from high-quality materials, including food-grade stainless steel, ensuring durability and reliability in operation. The polyurethane belt used in the conveyor is food-safe, making it suitable for handling food products.
Alarm System
The inspection conveyor is equipped with a modern alarm system. In case of detecting defects, the system automatically stops the conveyor and activates sound and light signals, allowing for prompt response to issues.
Conclusion
The inspection conveyor with a polyurethane belt is an indispensable tool for businesses seeking to ensure high product quality. With its construction, sensitivity, and reliability, this conveyor helps maintain the company’s reputation and increase consumer trust.
